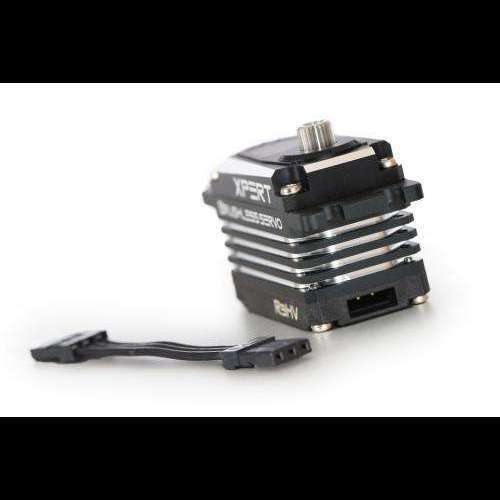

XPERT R3HV QUICK RELEASE LOW PROFILE HIGH VOLTAGE SERVO

Xpert

$149.99
SKU: RP-4401-HV

Sorry, this item is out of stock

    • Brushless motor design provides extremely high speed, top efficiency, and low power consumption with 250+ oz-in torque at 8.4V
    • Quick release connector for easy wiring
    • Plastic lower case with center and top aluminum design
    • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
    • Light weight design
    • All Aluminum case for the best thermal dissipation and durability.
    • Strong Metal Gear
    • Glitch-free
    • Sophisticated error correction
    • High-Speed, High-precision 12-bit AD converter and CPU calculation
    • Fail safe
    • Over current protection
    • Over temperature protection
    • Start sonorant
    • Sanwa SSR mode compatible



    Specifications

    • Power Supply: 6.0~8.4V
    • Speed (sec/ 60°):
      • @6.0V: .070 sec/60°
      • @6.6V: .063 sec/60°
      • @7.4V: .056 sec/60°
      • @8.4V: .049 sec/60°
    • Torque (oz/in):
      • @6.0V: 180.16 oz-in
      • @6.6V: 198.07 oz-in
      • @7.4V: 222.08 oz-in
      • @8.4V: 252.06 oz-in
    • Torque (kg/cm):
      • @6.0V: 12.98 kg-cm
      • @6.6V: 14.27 kg-cm
      • @7.4V: 16 kg-cm
      • @8.4V: 18.16 kg-cm
    • Dimensions: 40.8X20.2X26.8 mm
    • Frequency: 200/333 Hz
    • Range: 50~400 Hz
    • Center Position: 1520us
    • Applications: 1/10 Buggy and Touring Car, airplane wings
    • Matching Gear Set: XGS71740
    • Matching Case: XC-21Â
